ARQFIBRA LINER

Design:

10 mm wide, 45° cut lines

Material:

Hard-grain polyester fiber

Fire rating:

Class B s1, d0 (EN 13501-1), Class A (ASTM E84)

Dimensions:

600 mm wide x 2400 mm high

Thickness:

9 mm

Downloads:

 Technical manual

Colors:

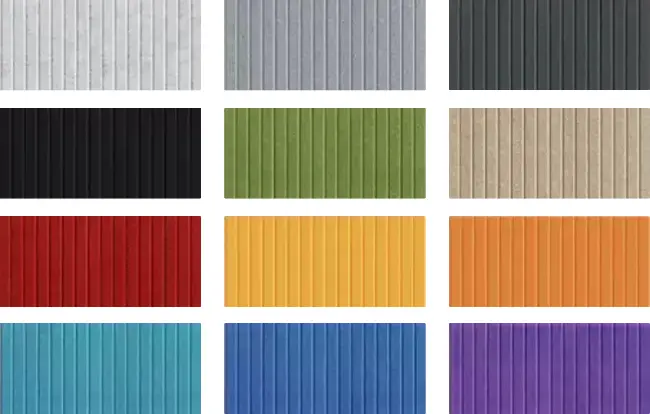

arqfibra colors

Acoustic absorption:

arqfibra 3

Installation tip:

Make sure the wall surface is clean and dry. Press from the center outwards to maximize adhesion. Use contact adhesive to fix the panels to the desired surface.

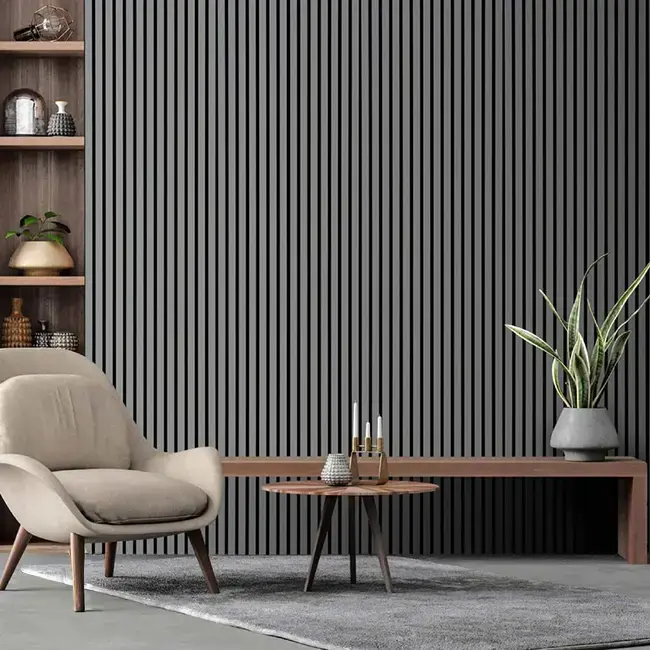

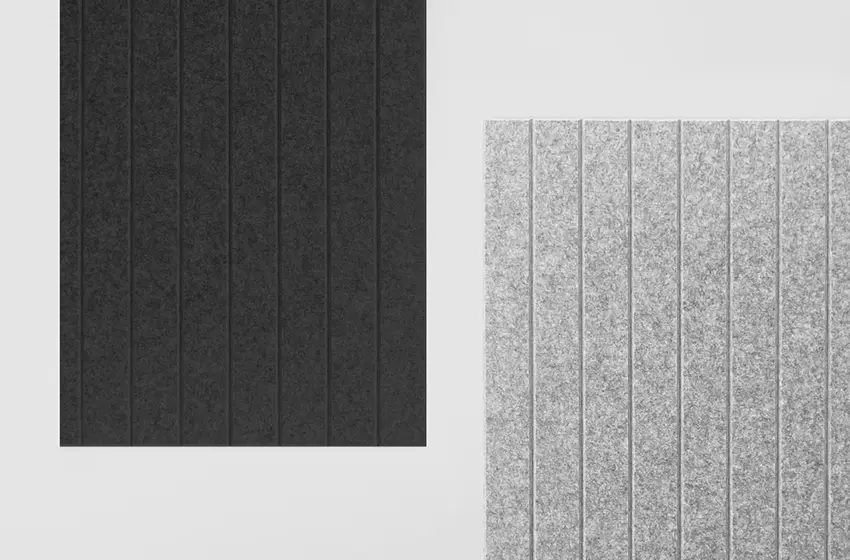

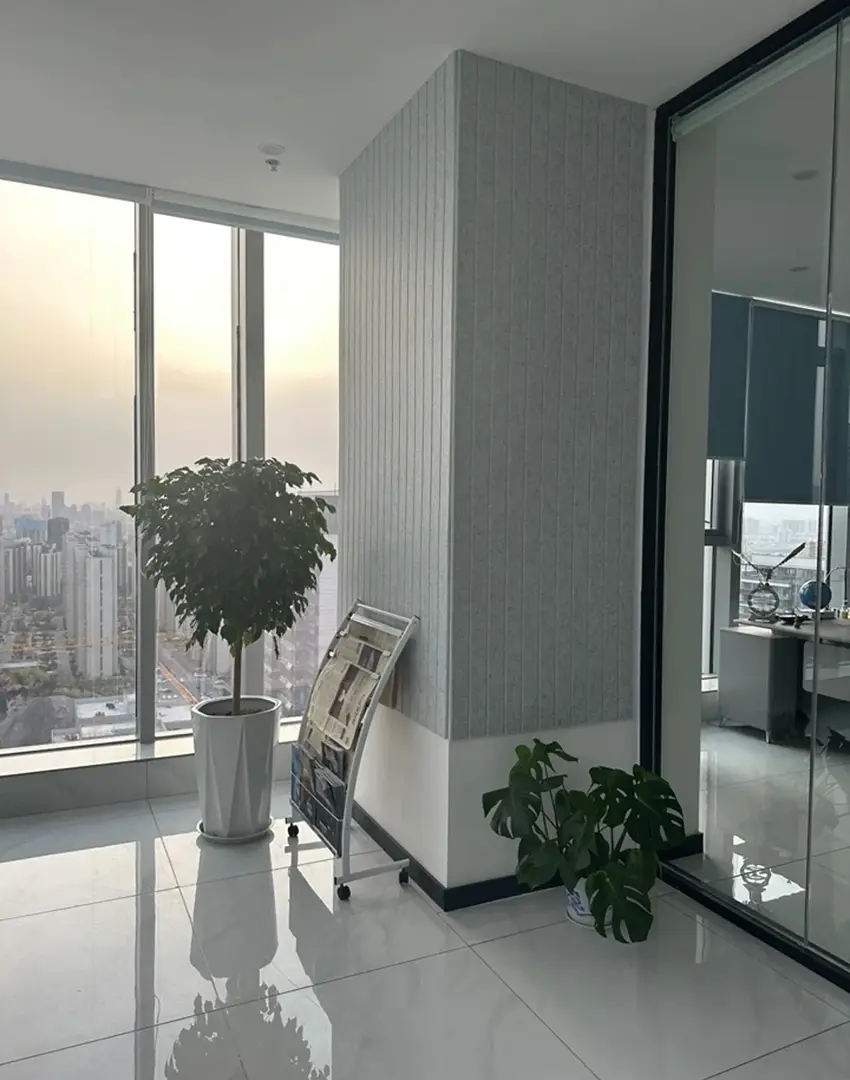

acusticos absorbentes-placayeso-2

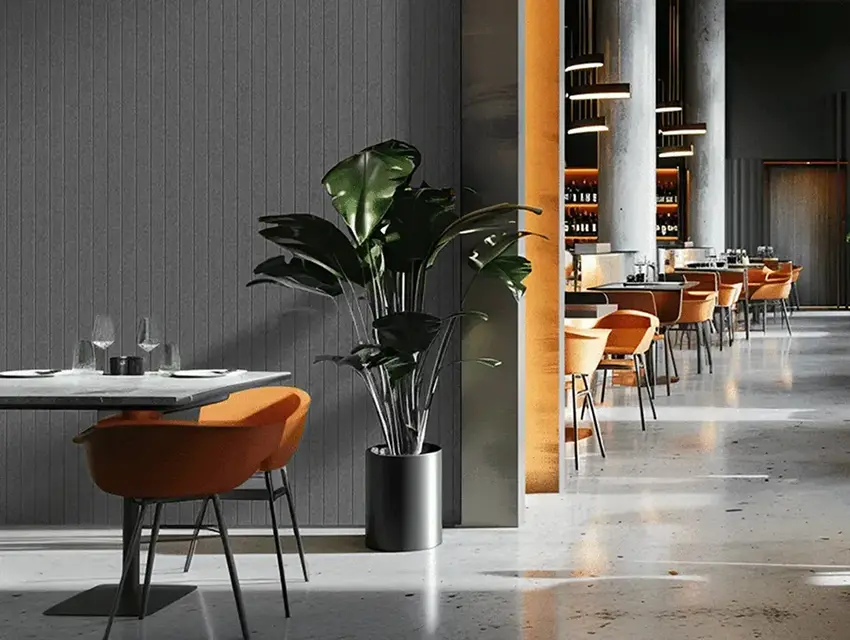

acusticos absorbentes-placayeso

Acoustic wall panels made from a premium polyester fiber module, providing powerful sound absorption, a modern aesthetic, and easy installation. They feature 20 mm wide slats with a 10 mm wide 45-degree cut line.

Applications: Studios, classrooms, offices, bars, karaoke rooms, living rooms, bedrooms, conference rooms, multipurpose rooms, cinemas, auditoriums, restaurants, and hotels.

acusticos absorbentes-placayeso-2acusticos absorbentes-placayeso-2acusticos absorbentes-placayeso-2

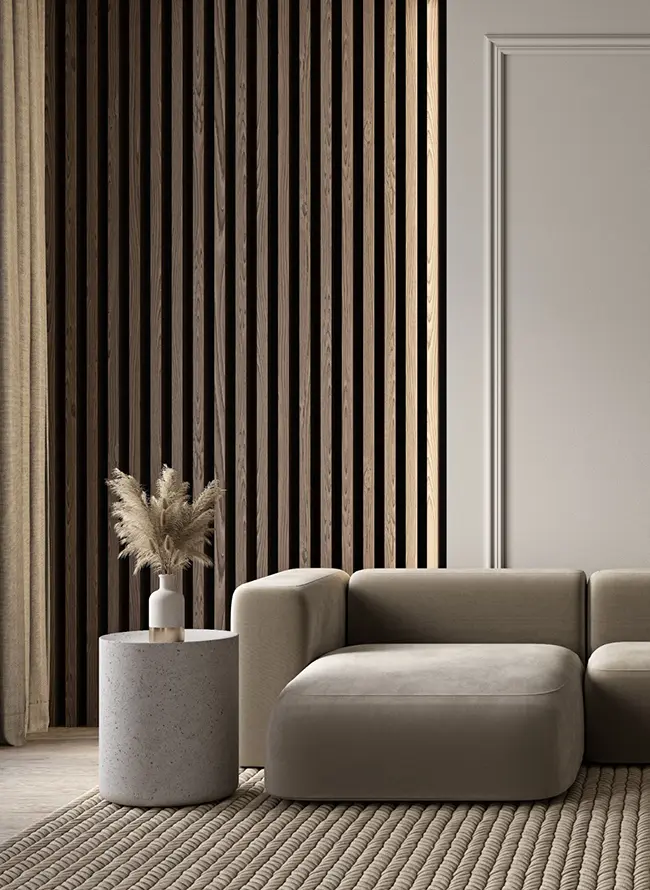

ARQFIBRA WOOD

Design:

27 mm MDF, 13 mm edge-to-edge / Custom

Material:

MDF + Polyester Fiber

Finish:

Veneer/Melamine/Super-textured Melamine

Standard Size:

2400 x 600 x 21 mm / Custom

Thickness:

Polyester: 9 mm/12 mm, MDF: 12 mm/15 mm

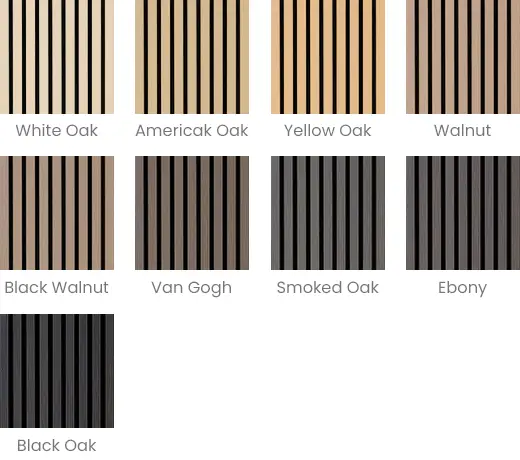

Colors:

arqfibra colors

Acoustic absorption:

arqfibra desc 1

Our wooden slat wall panel offers Class A sound absorption, absorbing sound waves and eliminating reverberation, creating a quieter and more comfortable space for you.

Sustainable material:

arqfibra desc 2

The wooden sheets are made from recycled material, with FCS test report, and the felt is made from recycled plastic bottles, with GRS test report.

Fire resistant:

arqfibra desc 3

The interior acoustic panel will be safer thanks to its fire-resistant properties. Depending on the materials and finishes, we can manufacture wooden slat acoustic panels with a fire resistance rating of up to Class B, according to European standards.

Easy installation:

arqfibra desc 4

Acoustic panel installation can be done with minimal construction skills, DIY.

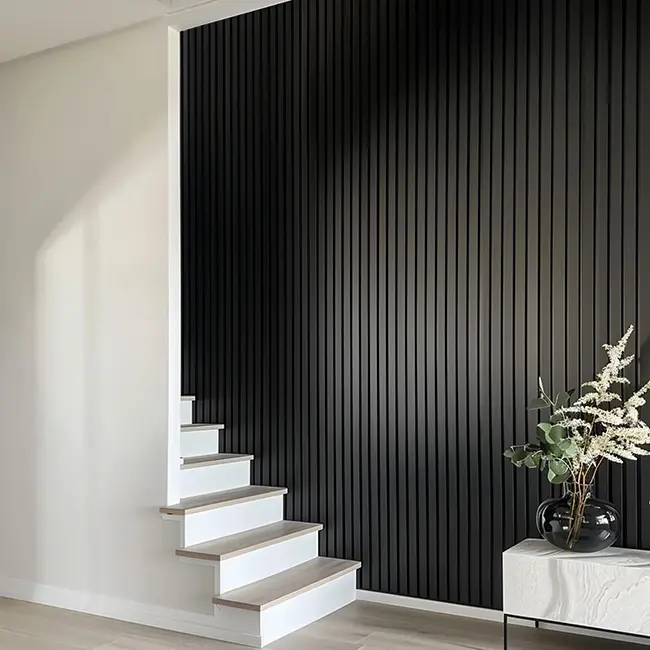

arqfibra 3
acusticos absorbentes-placayeso

Our panels are made with sustainable materials.
The acoustic felt is made from recycled material, certified according to the Global Recycling Standards (GRS). The wooden slats are made of MDF board, certified by the Forest Stewardship Council (FSC).

The standard panel size is 2400 x 600 x 21 mm.

The product's base consists of a 9 mm thick polyester panel, and the surface is composed of 12 mm thick MDF slats. These slats are 27 mm wide and spaced approximately 13 mm apart.

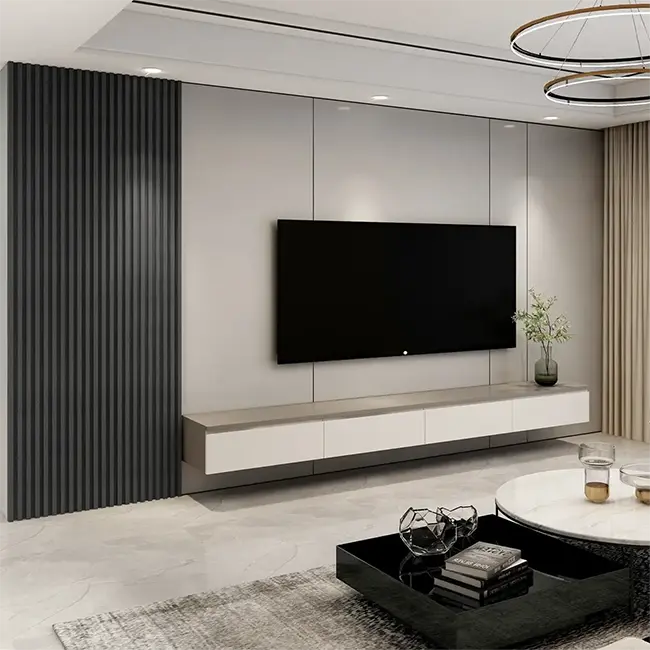

acusticos absorbentes-placayeso-2arqfibra 5

ARQFIBRA Polyester Fiber Plate

Material:

Polyester fiber felt

Colour:

Graphite Gray / Concrete Gray / Green / Violet / Yellow / Sky Blue / Beige / Blue / Chocolate

Thickness:

9 mm, 12 mm, 15 mm, 20 mm, 25 mm

Presentation:

1,220 x 2,440 mm plates

Density:

180-220 Kg/m3

Attributes:

Free of volatile particles / Antiallergic / Odor free, Free of toxic fumes

Other:

100% recyclable, Fire resistance class B

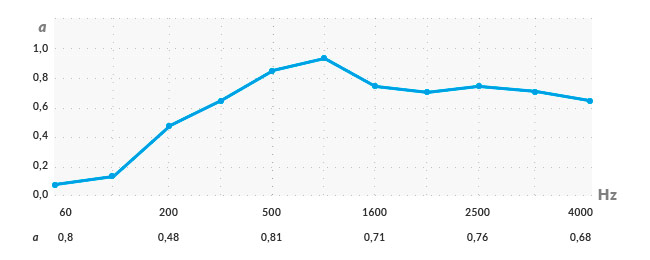

acusticos absorbentes-cielorraso-3-b

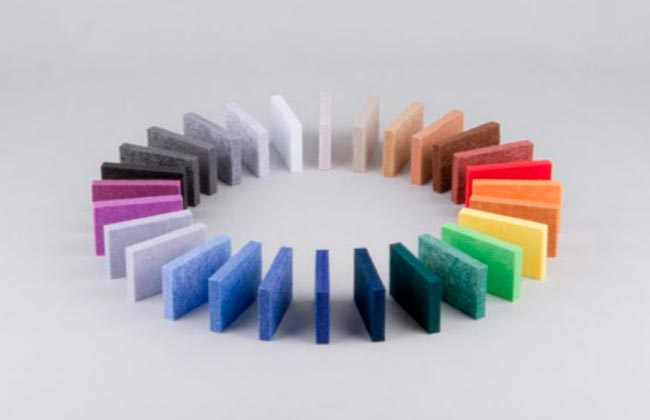

acusticos absorbentes-placapoliester-3

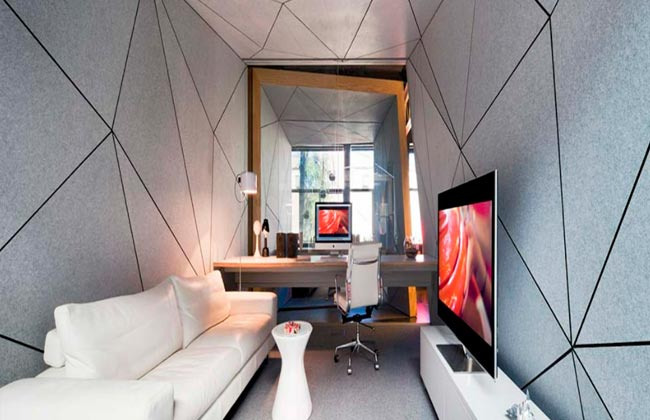

acusticos absorbentes-cielorraso-3

ASTS ARQFIBRA acoustic panels, made of polyester fiber with recycled raw material, chemically treated to be fireproof / flame retardant; demonstrate exceptional acoustic performance over a wide range of frequencies in combination with optimal structural rigidity, which allows for use on hanging or applied surfaces.

It is a perfect material to apply on walls or ceilings in order to reduce sound reverberation and thus achieve a correct sound comfort together with a unique architectural design freedom.

ASTS ARQFIBRA has very good air porosity, which provides optimum absorbent performance for closed environments.

The thicknesses can be from 9 to 25 mm, with the variant of being able to add layers of different thicknesses in case a greater final thickness is required. It can improve the absorbent effect, mainly in low and medium frequency, by leaving a small air chamber behind the panels.

Aplications:

Hotel Room - Corridors - Meeting Room - Reception - Offices - Open Offices - Open Plan Office - Call Center - Schools - Acoustic coatings

Recommendations for use:

Slight color deviations may occur as PET felt panels are made from recycled fibers. The panels have a front and a back because the fibers are oriented differently on both sides, the direction of the fluff. Remember to apply the panels in the same direction and use the same side during installation to avoid alterations in appearance. Manual cutting: Due to the fibrous structure and thermoplastic properties of the material, it is important to use very sharp tools during cutting. This prevents the fibers from tearing and minimizes fraying. Excess friction, caused by using dull tools, can lead to tears in the material.

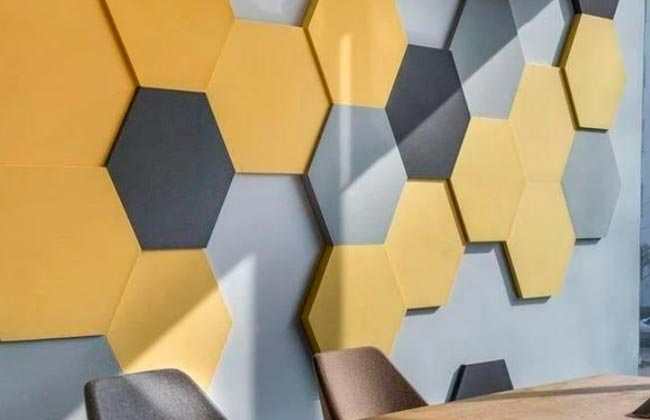

acusticos absorbentes-placapoliester-4
