Products > Thermal Insulation > Hot Insulation > Mineral Wool

BASALTA MINERAL WOOL

Thicknesses:

50, 65, 75, 100 mm

Measures:

50 and 65 mm = 1,20 x 10m / 75 mm= 1,20 x 8m / 100 mm = 1,20 x 5m

Density:

Approximately 30 Kgs./m3

Thermal conductivity:

0.036 W/mK

Presentations:

Kraft paper coating,triple-reinforced aluminium coating, or no coating.

termicas calor-termolana

Mineral wool made from volcanic rock is one of the most broadly used thermo-acoustic insulation materials due to its variety of presentations, thicknesses, densities and coatings, which makes it possible to use it in a vast range of situations.

Its molecular structure, achieved through a centrifugal process, allows to group a great quantity of fibers with a low level of adhesive, contributing to obtain a high density, from 35 to 180 Kg./m3, as well as an excellent insulation performance.
It is completely fire resistance and it can stop fire when applied in high densities.

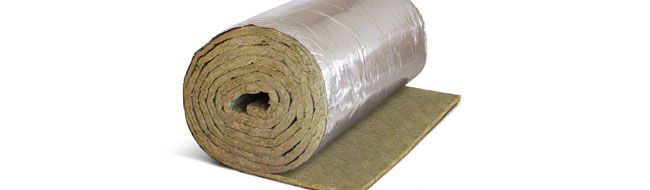

It comes in flexible rolls with or without reinforced aluminium coating, in flexible blankets with an hexagonal wire on one of its sides, in preformed rigid tubes, in loose flakes, and in rigid and semi-rigid boards.

termicas calor-termolana-b

RIGID BOARDS

Thicknesses:

25 - 100 mm

Density:

Depending on the thickness

Thermal conductivity:

Depending on the thickness

termicas calor-termolana-2

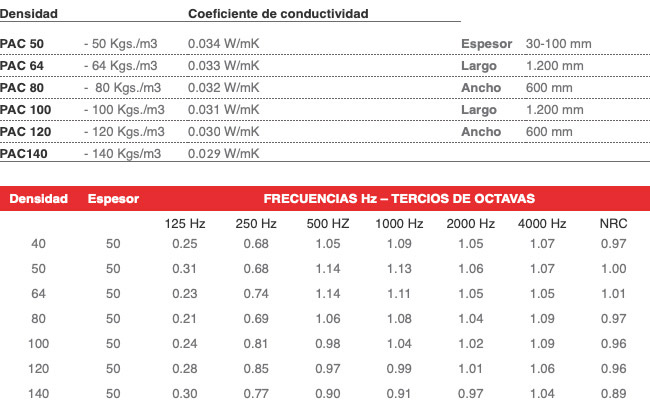

Rigid high density boards made with basalt mineral wool. PRT boards come in different densities.

They are available in different coatings.
Packing: cardboard boxes or polyethylene bags.

termicas calor-termolana-2-b

HALF-CYLYNDER PIPES

Thicknesses:

25 to 100 mm

Density:

140 - 160 Kg./m3

Diameters:

1/2” up to 10"

Thermal conductivity:

0.036 W/mK

termicas calor-termolana-3

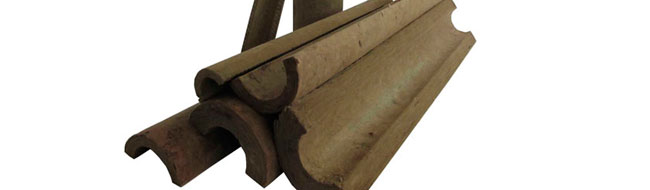

Half-cylinder pipes are manufactured from mineral wool and specially designed for thermal and acoustic pipe insulation. They are preformed and come in diameters from ½” to 10”, thicknesses from 25 to 100 mm, and a 140-160 Kg./m density.
Their thermal conductivity is 0.036 W/mK.

BLANKETS

Thicknesses:

25 to 100mm

Size:

1 x 2m

Density:

80 up to 180 kg/m3

Presentations:

Blanket with galvanized wire mesh

Packing:

Polyethylene

termicas calor-termolana-4

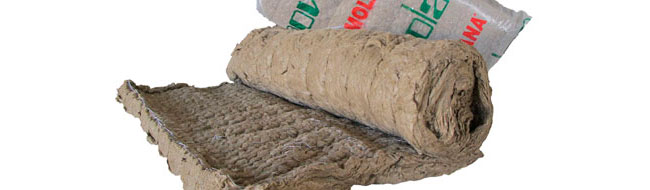

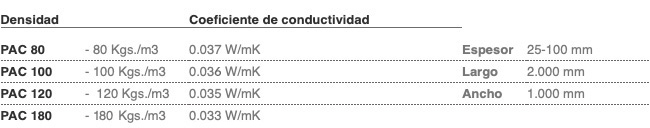

CCT blankets are made with basalt mineral wool, specially impregnated in four densities.

It comes with a galvanized wire mesh of 25mm applied to one of its surfaces. This product is delivered sewn with other materials.

termicas calor-termolana-4-b

Fire resistance:

Mineral wool made from basalt volcanic rock can resist temperatures of more than 1000 C degrees without melting. However, binder exposed to more than C degrees will evaporate.

Nevertheless, the wool will remain intact, as well as its constructive cohesion, keeping the wool together and ensuring that the material will keep its rigidity and will protect the internal layers from the fire.
